Description
Product Introduction
According to the national standard（HJ 505-2009）5 Day culture method. Simple, safe and reliable mercury pressure sensing method (breathing) measuring water BOD,Fully simulate the natural biodegradation of organics,The manufacturing process design leading international,the industry's top function configuration, design of intelligent,The determination process of unattended, automatic record and print data,Goodbye to the mercury poisoning caused by the leakage of mercury column,Is a specially tailored Instrument Analysis Laboratory for Water Quality analysis BOD professional.
Technical Parameters
|
mainframe |
Instrument name |

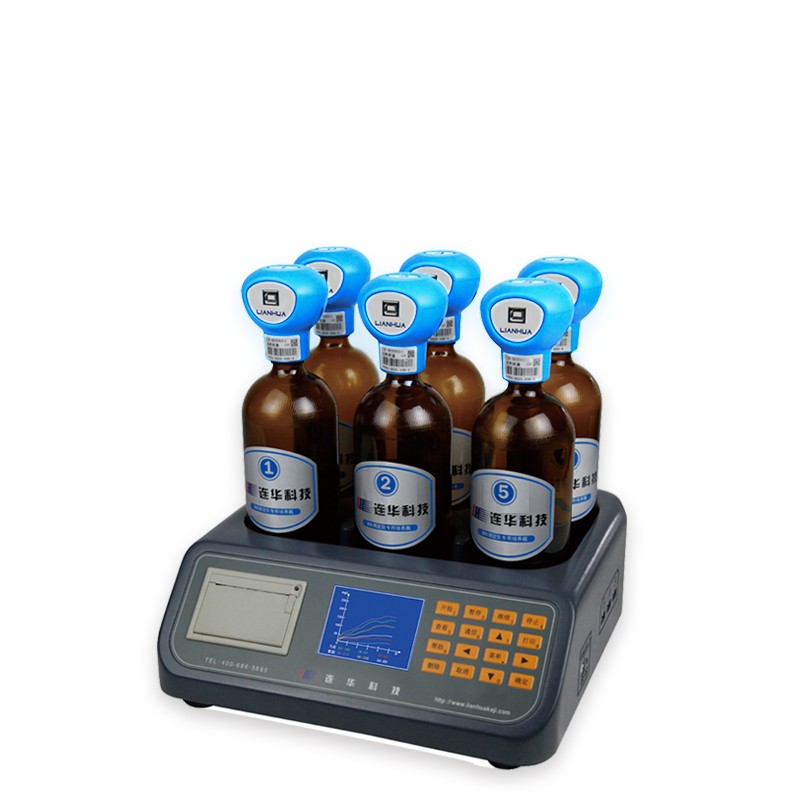

Biochemical Oxygen Demand (BOD5) Instrument l |
|
Instrument model |
LH-BOD601 |
|
|
Measurement range |
0-4000mg/L |
|
|
Measuring error |
±10% |
|
|
Record interval |
6 minutes - 3 hours/time |
|
|
Cycle length |
1-30days |
|
|
Measure amount |
6 |
|
|
Culture bottle volume |
580ml |
|
|
Data storage |
20 years |
|
|
Communication |
USB transmission, infrared transmission (optional) |
|
|
Culture temperature |
20±1 |
|
|
Working power |
110-230V 50-60HZ |
|
|
Rated power |
24W |
Functional characteristics
(01) At the same time can be measured in a sample of 6;
(02) Automatic daily print data;
(03) Color liquid crystal display screen, the sample values with different colors, intuitive and clear;
(04) Has a plurality of stirring mode (batch, continuous), prolong the service life of the instrument;
(05) The culture period can be adjusted according to the demand, can choose 1-30 days;
(06) To view the test process and the test data, no historical data;
